The fastest and simplest wind turbine access System Cage 1.1
Most flexibility and fastest set up time
For all wind turbines
Payload 300kg/660lbs
Easy transport without trailer
Technical information

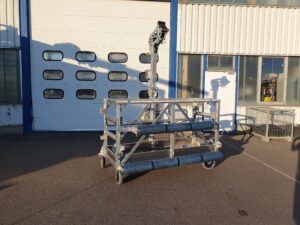

System Cage
Easiest and fastest acess for wind turbines.
Accessibility
600ft 180m height
Lifting speed
35ft/min
Winches /Safety catches
Tirak 701P + Blocstop BSO 500
Deadweight
440lbs (220kg)
Load Capacity
660lbs (300kg)
Power supply
120/240 V split phase AC, Nema L14-30
Certification
UL Certified for USA and Canada (file no. SA 45439)
Ready to use. Simple to transport.
Transport dimensions
84.3 in x 65 in x 64.2 in (2140 mm x 1650 mm x 1630 mm)
Transport weight
440lbs / 220Kg
Transport
Inside van or on small single axis trailer
